The MARKOLASER HALLMARKER is a specialist of marking on precious metals. The different ways of marking on gold/silver makes it most versatile and thus stand out from the rest of the competition. The different ways of marking with JL-20:

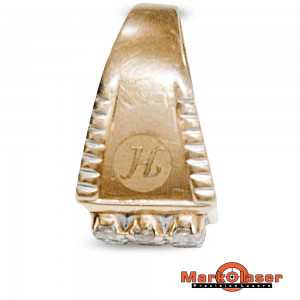

• Marking of crisp, sharp and thin lines on the metals ensures extremely low loss of Gold/silver for giving a permanent mark on the jewelry.
• On very shiny polished Gold or Silver jewelry, micro patterns can be done in such a manner that it becomes difficult to copy such watermarks, hence the product cannot be replicated.
• Another requirement of Gold/silver Hallmarking institutions is DEEP but very fine marking. MARKOLASER Jewelase JL-20 gives these results in one pass ONLY reducing the loss of gold/silver.
• MARKOLASER is still undergoing more research in developing more economic and sustainable competitive advantage in jewellery marking applications.

JL-20, A heavy duty marking and engraving machine, is an upgrade of JL-HM-20, comes with additional standard features like automatic Z motion, high speed, long duty cycle capability and long working hours ( up to 72) and 2 years of Warranty(ask for warranty terms & conditions) on the entire machine. Not only is it a much faster laser machine than JL-HM-20, but it can do limited engraving on precious metals like gold and silver. Along with all the features of JL-HM-20, it also includes a setup ready for rotary marking for induction later on. It is also possible to run the laser machine from a distance.

Jewelase – 20 (JL-20): For marking & deep engraving on jewelery

Jewelase 30 (JL-30): For Professional/Fast/Deep/Sharp/Cutting

Jewelase 50 ( JL-50): For Professional deep cutting

Jewelase 70 (JL-70) : For Thicker cutting of metals

Jewelase 100* (JL-100*) : Coming soon

Technical Specifiaction

	JL-20	JL-30	JL-50	JL-70	JL-100* (coming soon)
Type	Fiber	Fiber	Fiber	Fiber	Fiber
Model Specs ( Avg. Power) (W)	30	30	50	70	100
Wave Length ( nm)	1064	1064	1064	1064	1064
Modes of Operation	Pulsed	Pulsed	Pulsed	Pulsed	Pulsed
Frequency of Pulse ( KHz)	20-500	30-500	30-500	30-500	30-500
Peak Power (KW)	14	16	20	30	–
M2	<1.3	<1.6	<1.6	<1.6	–
Red Alignment Laser	Standard	Standard	Standard	Standard	Standard
Electrical	24V/10A	24V/10A	24V/10A	24V/10A	24V/10A
Environment (ºC )	10-35	10-35	10-35	10-35	10-35
Focal Length (Ø) Standard	160	160	254	254	–
Cooling Type	Air Cooled	Air Cooled	Air Cooled	Air Cooled	Air Cooled
Standard Marking Field (mm)	100x 100	100x 100	100x 100 / 150x 150	100x 100 / 150x 150	–
Connected Load (Watts	650	850	1000	1500	–
Spot Theta with 160mm f theta ( µ)	25-32	32-35	32-40	32-42	–
Filling Space (mm)	0.01-0.02	0.01-0.02	0.01-0.03	0.01-0.03	–
Marking	✓	✓	✓	✓	✓

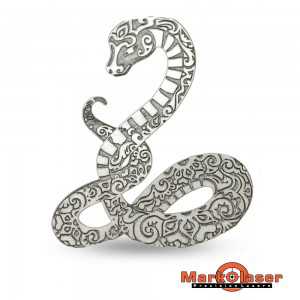

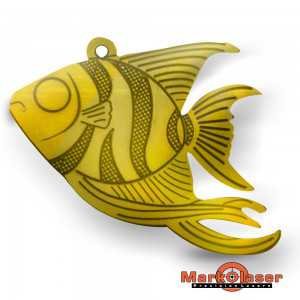

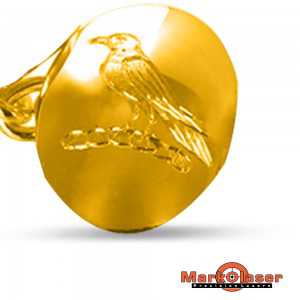

Deep Engraving of designs	✓	✓	✓	✓	✓
Cutting	Limited	✓*	✓*	✓*	✓*
Picture Print	✓	✓	✓	✓	✓
Inside Ring/ Bangles	✓	✓	✓	✓	✓
Outside Ring / Bangles	✓	✓	✓	✓	✓

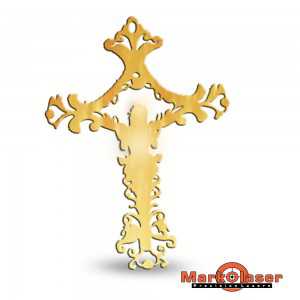

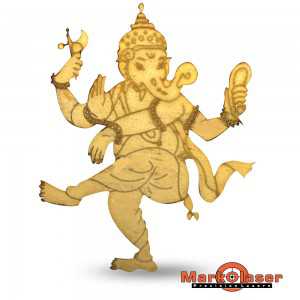

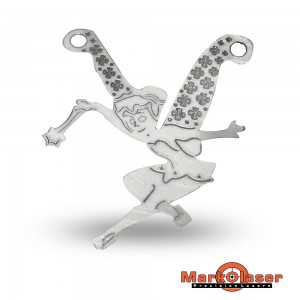

Cutting of Pendent	✗	✓	✓	✓	✓
Intricate ( Micro) Patterns	Limited	Limited	✗	✗	–
Class IV ( Customer must ensure proper handling of laser safety while using)	✓	✓	✓	✓	✓
Marking Field (mm) (Optional)	150×150/ 200×200	150×150/ 200×200	150×150/ 200×200	150×150/ 200×200	150×150/ 200×200
Rotary (Optional)	✓	✓	✓	✓	✓
Suction (Optional)	✓	✓	✓	✓	✓
Class I (Optional)	✓	✓	✓	✓	✓
