Justmark hallmarking machines

Justmark hallmarking machines

Justmark hallmarking machines

1: Pocket friendly laser.

2: Reliable MOPA technology.

3: 2 Yrs warranty with Service & Support.

4: Faster than most other Hallmarking machines.

5: No missing characters even during long use.


"Justmark" is a simple hardworking yet reliable laser for basic hallmarking applications. In spite of being a lowcost Hallmarking laser solution, we have made quality and reliability as our first priority.


Justmark hallmarking machines So how do we compare and differentiate from other low-cost systems :

Great marking Quality.

Much faster machines than most of our competition in this price bracket.

Consistent power on full duty cycle.

After sales service : We support Justmark lasers even after two years with paid service support. So no

worries even if those components are not available in market after the warranty period. We will take care.

High resolution digital servo drivers automatically returns to its original factory tuning at the start of laser each time. So no need to calibrate the system every time when you start it.

Sturdy constructions, computerized steel fabricated laser cut, powder coated structure.

All our electronics ,cables etc. are of highest quality sourced from well known global suppliers.

Justmark lasers are constantly improved to consume lesser energy & higher quality output.

Extremely low spare part consumption due to careful selection of sub assemblies & components used.

Rotary axis: supplementary axis like rotary axis can be optionally installed.

Backlash protection: one of the most important Reasons to opt for Justmark Hallmarker, having an excellent backlash protection design of optoelectronics. This is a major cause of failure of lasers specially on steel,gold & silver.

Our small but monolithic designs ensure the fiber cable is uninterrupted. So no laser power fluctuation.

JUST MARK is a new option for clients who want to enter the Hallmarking business.



Technical Specification
Model JustMark 20W MOPA (JM20)
Laser Type Fibre Laser
Average Output 20W
Frequency 30-250 kHz
Wavelength 1064nm ± 10mm
Pulse Energy 0.6mJ
Marking Area 100mm x 100 mm
Focal length of optics 160 mm (options available)
Technology MOPA
Peak Power 8Kw
M2 < 1.3
Red Alignment Laser Included
Operating Temperature
(Air conditioned room recommended)
25 C
Power Supply 230 V (AC) ± 10%, 50/60 Hz, 250 W
Safety Regulation
(Free safety eyewear)
Class 4
Red Beam focal distance Yes
Software Lock Administrative control for operator
Foot Switch Optional
Rotary (Motor) Optional

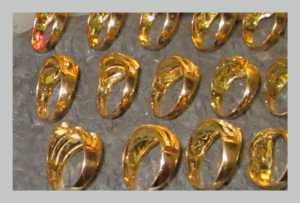

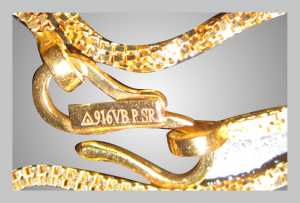

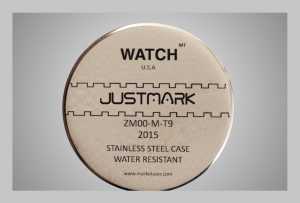

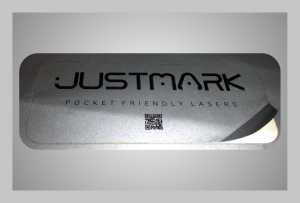

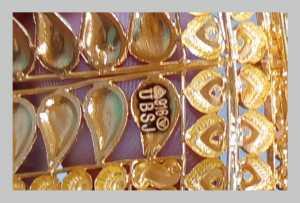

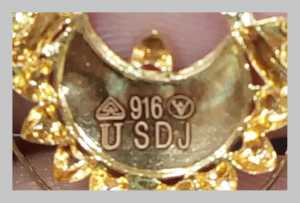

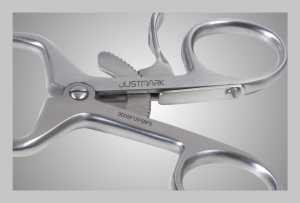

Sample Gallery
